Përshkrim

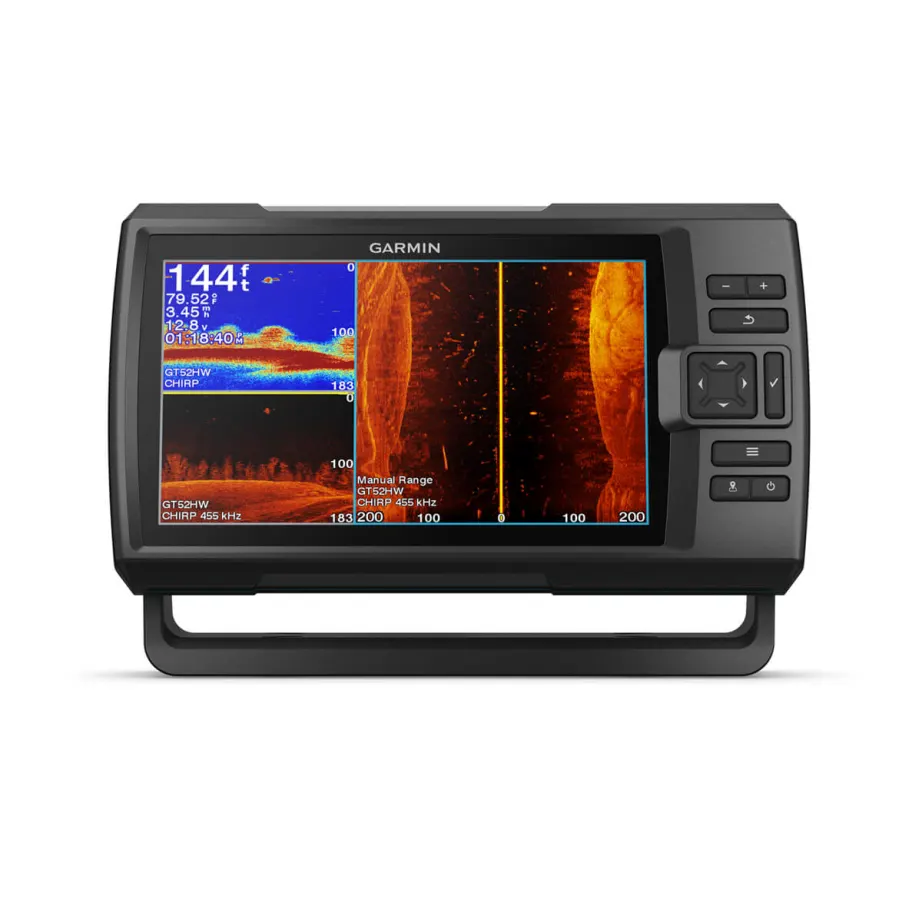

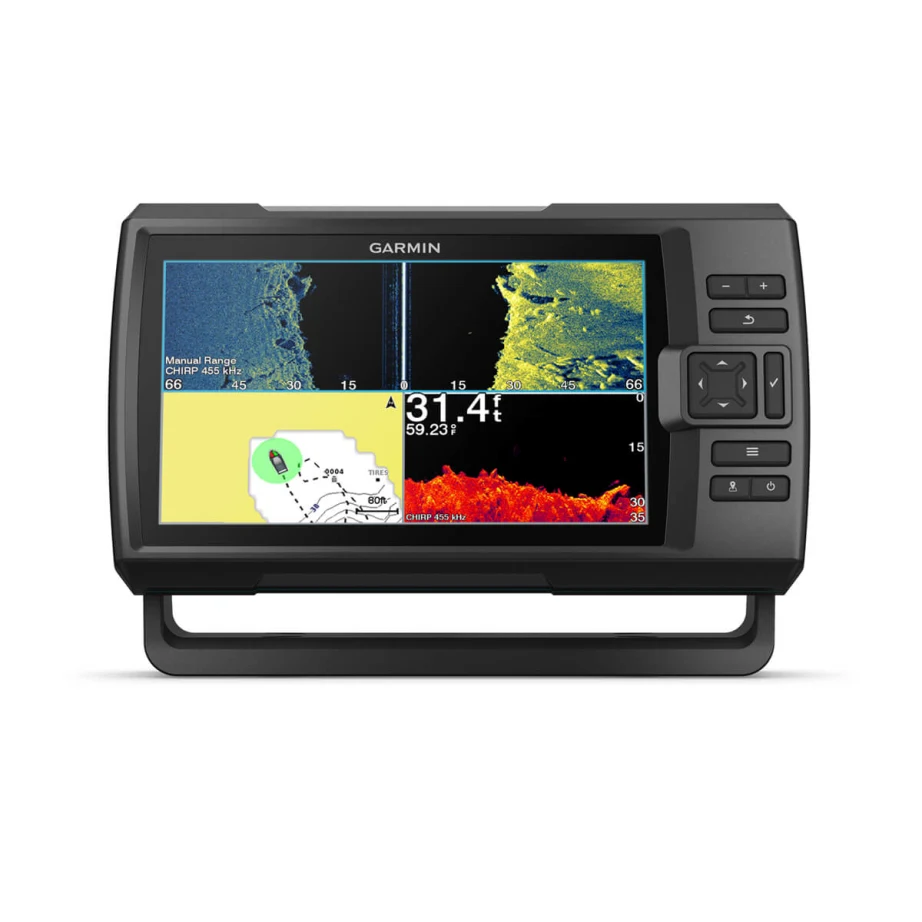

CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9” fishfinder.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

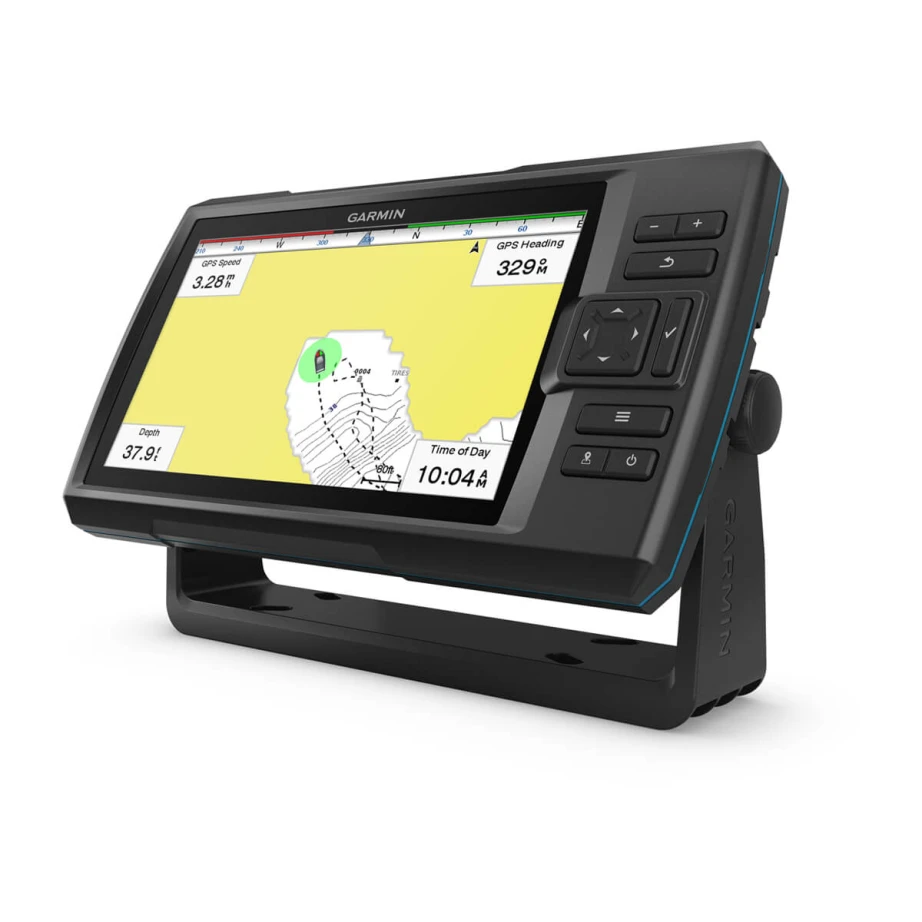

QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours2.
WI-FI CONNECTIVITY
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
INCLUDED HARDWARE
The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
General |
|
| Dimension | 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm) |
|---|---|
| Input | Keyed |
| Display Size | 4.4″ x 7.8″ (11.2 x 19.8 cm); 9.0″ diag (22.8 cm) |
| Display resolution | 800 x 480 pixels |
| Display Type | WVGA color |
| Weight | 2.4 lbs (1.1 kg) |
| Waterproof | IPX7 |
| Mounting Options | flush, tilt/swivel |
Maps & Memory |
|
| Waypoints/favorites/locations | 5000 |
|---|---|
| Track points | 50,000 |
| Tracks | 50 |
| Navigation Routes | 100 |
Sensors |
|
| Has built-in receiver | ✓ |
|---|---|
| Receiver | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
| GPS | ✓ |
| Supports WAAS | ✓ |
Optional Map Support |
|
| Garmin Quickdraw Contours | ✓ |
|---|---|
Sonar Features & Specifications |
|
| Displays sonar | ✓ |
|---|---|
| Traditional sonar (dual frequency/beam) | Built-in |
| ClearVü | ✓ |

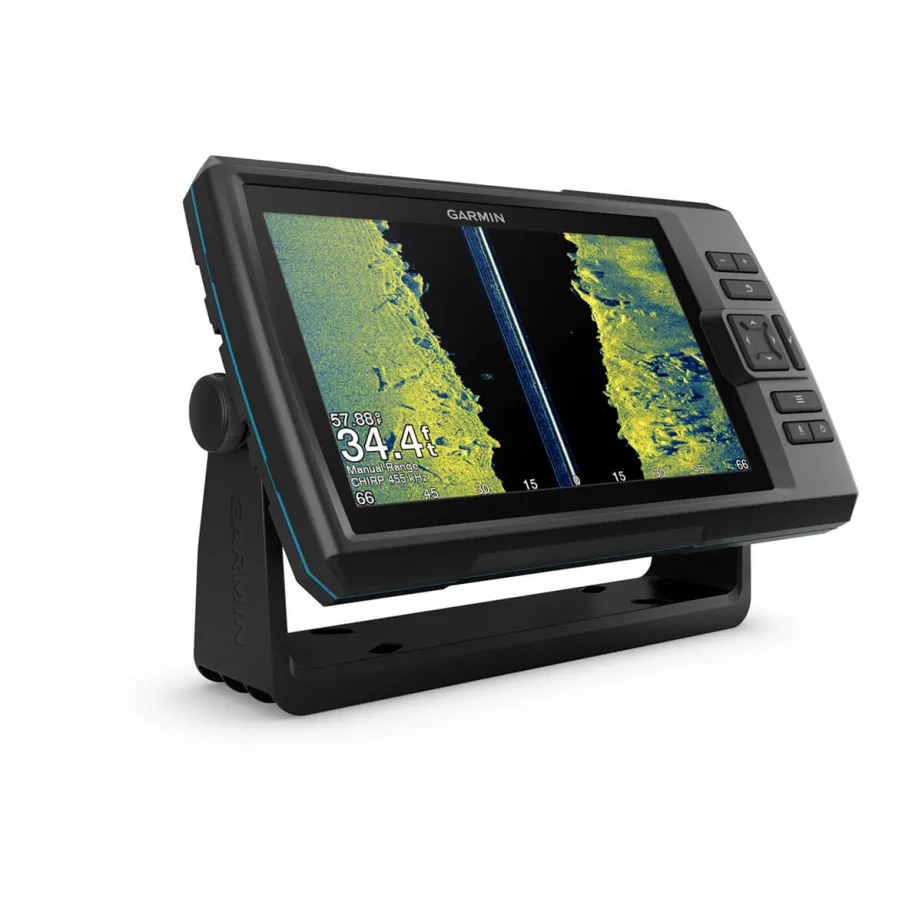

| SideVü | ✓ |
| Frequency | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
| Bottom Lock (shows return from the bottom up) | ✓ |
| Water Temperature Log | ✓ |

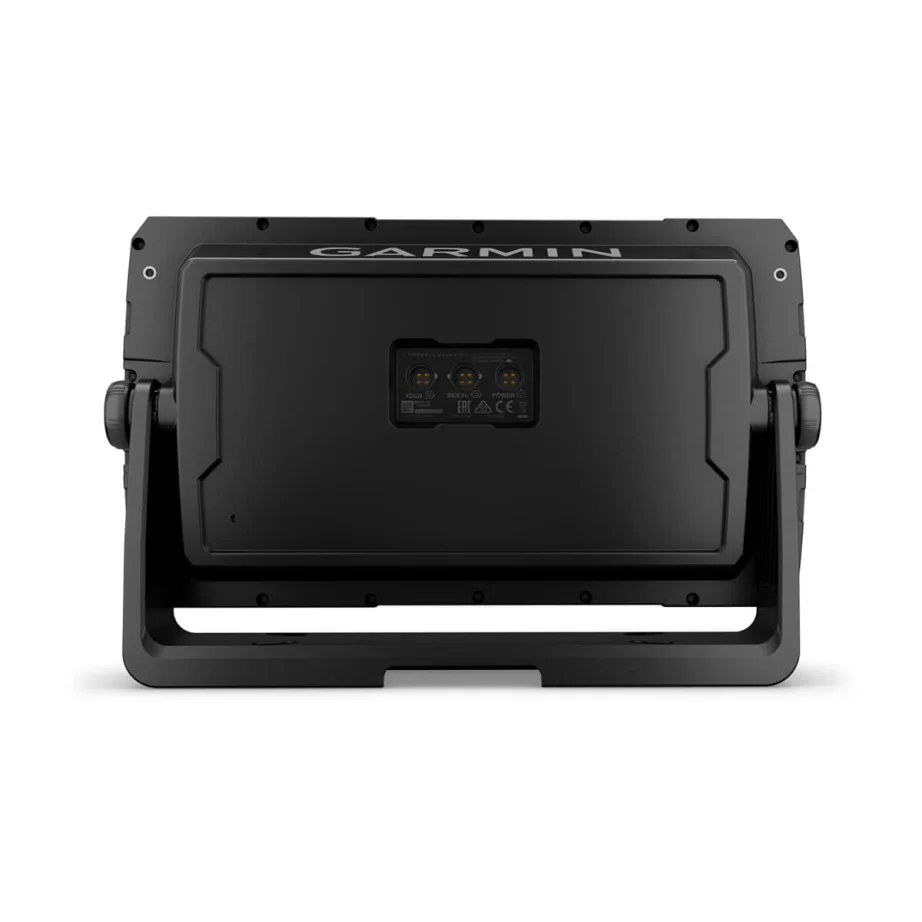

Connections |
|
| 4-pin transducer ports | 2 |
|---|---|
| Garmin Wi-Fi network (local connection) | ✓ |
Electrical Features |
|
| Power Input | 12 to 20 Vdc |
|---|---|
| Typical current draw | 0.75 A |
| Max current draw | 1.5 A |
| Power Consumption | 9.0 |
| Transmit power | 500 W (RMS) |
Fishfinder Features |
|
| Split-screen zoom | ✓ |
|---|---|
| Fish Symbol ID (helps identify fish targets) | ✓ |
| Autogain technology (minimizes clutter; maximizes targets) | ✓ |
| Adjustable depth line (measures depth of underwater objects) | ✓ |
| A-scope (real time display of fish passing through transducer beam) | ✓ |
| Water temperature sensor included | ✓ |
| Depth range shading | ✓ |
